PERFORMANCE COILOVER KIT W/ HEIGHT ADJUSTABLE FRONT COILOVERS - 1061SPC

Fits: 2019+ Ram 1500

-1" to -3" Front and -3" or -4" Rear 2WD
-1" to -4" Front and -3" or -4" Rear 4WD

NOTE: FOR 6 LUG MODELS ONLY

Precision and performance are the objectives for the new line of Belltech 2019+ RAM 1500 lowering kits. Our kit lowers the front of your vehicle -1” to -3” on the 2WD application and -1” to -4” on the 4WD application. The rear is lowered -3” or -4”, to improve appearance and a lower center of gravity. We go well beyond looks and deliver the ride quality you have been dreaming of.

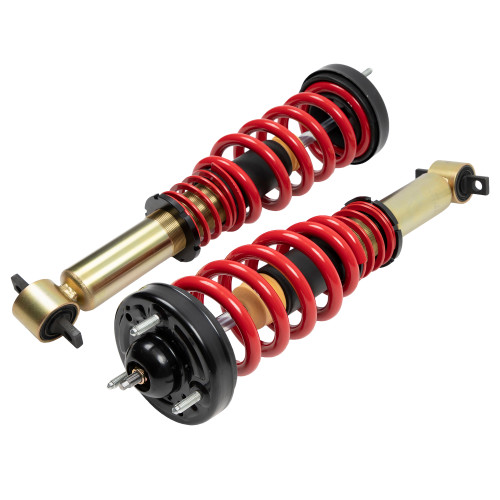

The front suspension includes our robust Belltech lowering coilovers designed using high-quality, multi-functional components that are built to last. Each coilover includes a finely tuned Belltech threaded damper. The dampers feature a large, 2.4” (60mm) damper body and 35mm independent rebound and compression valves. Together, these details keep oil cool and deliver precise, consistent damping throughout travel. The external threads and spring perch offer customizable height adjustability. We feature a large main spring and smaller helper spring. Both the main spring and the helper spring are made of cold-formed tensile steel and are powder-coated to prevent rust and wear. The coilover uses a progressive rate polymer, open-cell, bump stop for ideal bump stop engagement, and the OE top mounts for simplified installation.

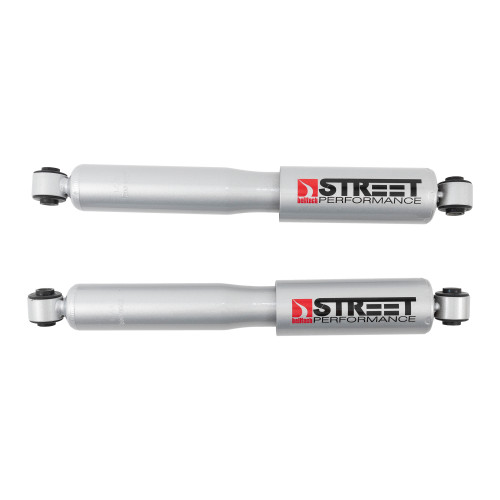

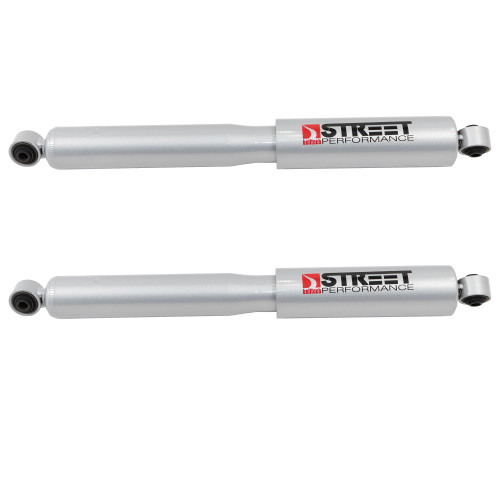

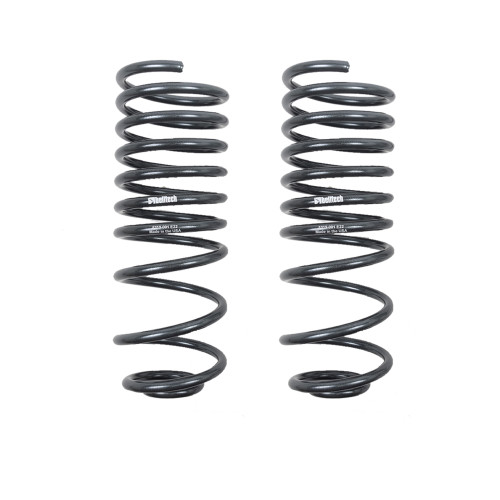

The rear end of the vehicle showcases Belltech Street Performance shocks that are perfectly tuned for your RAM.  They sport large 2.2” (55mm) damper bodies and use 35mm independent rebound and compression valves, to experience more exact, luxurious damping. To achieve -3” or -4” in lowering, our kit includes replacement coil springs and 1” spacers. To gain additional lowering for a full 4”, the spacer is removed. Belltech springs are made of cold-formed steel and are powder coated to prevent rust and wear. Our spacers are constructed of solid steel and powder coated making them extremely durable. The roll center correction bracket keeps the axle centered under the vehicle to maintain proper suspension geometry. Preserving correct anti-sway bar angles, our kit includes an adjustable end link assembly. To accommodate the new ride height, we also include a progressive rate polymer, open-cell, bump stop.

Belltech’s 2019+ RAM 1500 complete lowering kit gives your truck an eye-catching appearance and extraordinary performance. Easy installation plus quality components result in a refined ride for years to come.

• Customizable front lowering adjustability of -1” or -3” and -1” or -4”
• Customizable rear lowering options of -3” or -4”
• Large bodied 2.4” (60mm) preset front Street Performance dampers
• Large bodied 2.2” (55mm) preset rear Street Performance shocks
• 35mm independent rebound and compression valves
• Steel, powder coated, spring spacers
• Adjustable length heim joint end links
• Lowers center of gravity
• Preserves OE ride quality and suspension geometry
• Easy to install
• Engineered to exemplify ride quality and performance

Installation Instructions

• Installation Instructions 1
• Installation Instructions 2
• Installation Instructions 3
