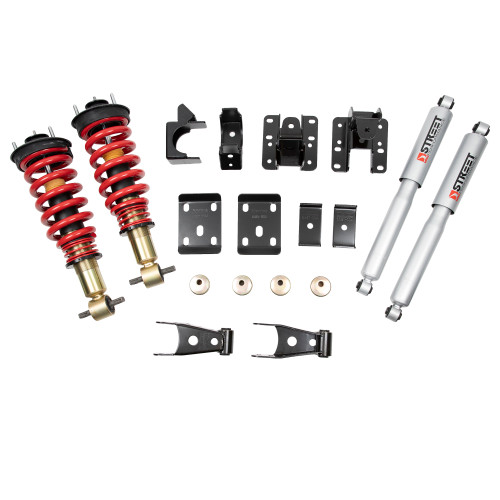

PERFORMANCE COILOVER KIT W/ HEIGHT ADJUSTABLE FRONT COILOVERS - 1008SPC

Fits: 15-20 Ford F-150 2WD
-1” to -5” F and -6” R Lowering

Outstanding performance, improved handling, and enhanced style are just a few of the upgrades you gain when swapping your OE suspension for Belltech’s 2015-2020 Ford F-150 lowering kit. With a front height adjustment of -3” to -5” and the rear -6”, you improve the appearance and achieve the ride quality you have been dreaming of.

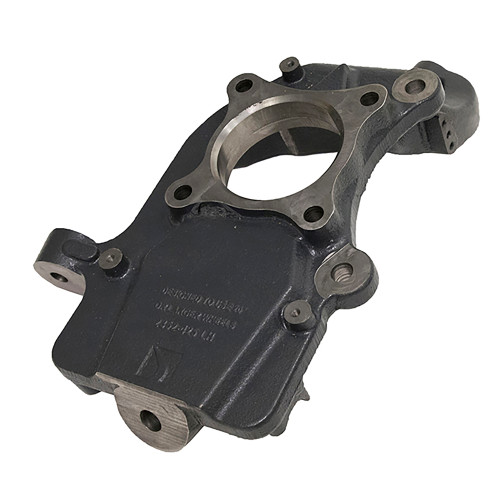

Belltech’s 2021+ Ford F150 lowering kit takes you to the next level with a sturdy drop spindle set. The spindles bring your wheels’ mounting position higher in the wheel well to gain an additional -2” closer to the ground. Belltech drop spindles are made of high-strength ductile iron and are powder-coated for a long-lasting, durable finish. Our Ford drop spindle is specifically designed to retain your truck’s factory suspension geometry. Then we add robust Belltech lowering coilovers designed using high-quality, multi-functional components that are built to last. Each coilover includes a finely tuned Belltech threaded damper. The dampers feature a large, 2.4” (60mm) damper body and 35mm independent rebound and compression valves. Together, these details keep oil cool and deliver precise, consistent damping throughout suspension travel. The external threads and durable spring perch offer additional height adjustability from -1” to -3”. We feature a large main spring and smaller helper spring. Both the main spring and the helper spring are made of cold-formed tensile steel and are powder-coated to prevent rust and wear. We add a progressive rate polymer, open-cell, bump stop for ideal bump stop engagement, and OE style top mounts for simplified installation.

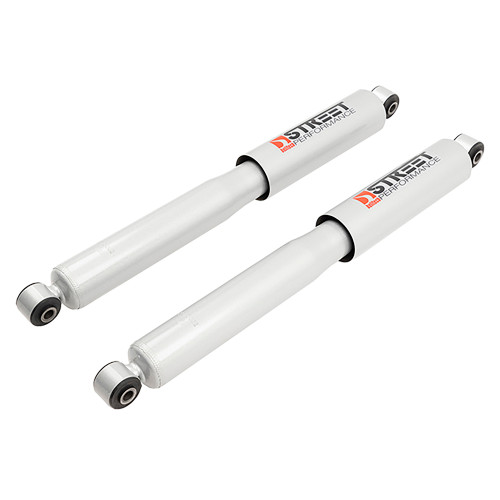

The rear end of the vehicle showcases Belltech Street Performance shocks that are perfectly tuned for your F-150. They feature large 2” (50mm) damper bodies and use 35mm independent rebound and compression valves; the result is exact, luxurious damping. Like the coilover dampers, our shocks are made with a low-friction design and use a rust-preventative coating to increase their lifespans. To achieve -6” in lowering, Belltech includes an easy-to-install flip kit and C-notch. The flip kit contains high-quality hardware and durable finished components. It seamlessly repositions your axle without interfering with any OE parts. The expertly engineered C-notch kit includes an outer frame plate with inside support plate for maximum frame rigidity and axle clearance.

Give your F-150 an eye-catching, high-performance upgrade with the Belltech 2015-2020 Ford F-150 Performance Handling Lowering Kit.

• Lowering range: -1” to -5” front and -6” rear
• Complete "ready to install" front height adjustable coilovers
• Vehicle specific factory preset damping
• 35mm independent rebound and compression valves
• Large 2.4” (60mm) Street Performance dampers at the front
• Rear Street Performance 2” (50mm) shocks

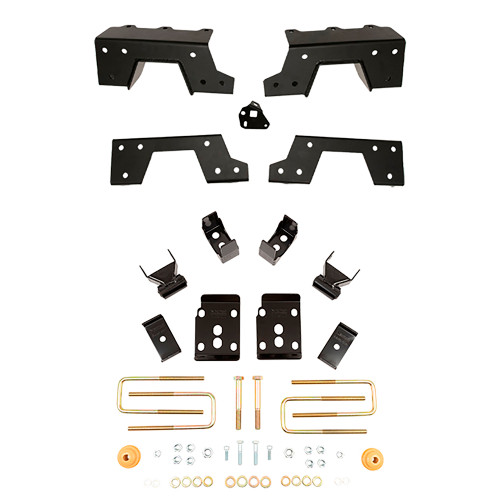

• High-quality bolt-on flip kit with C-notch
• Enhanced performance and handling
• Reduced body roll
• Improved ride quality
• Lowers center of gravity
• Easy installation

Installation Instructions

• Installation Instructions 1
