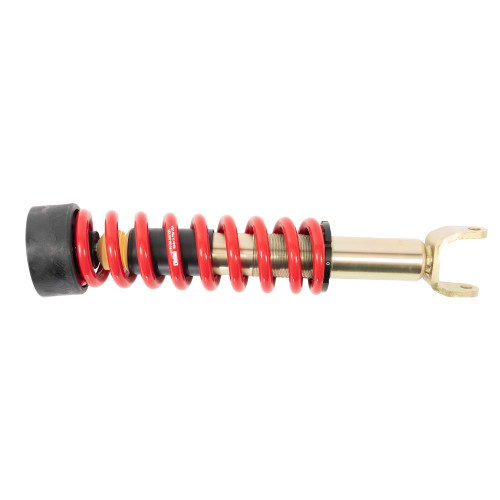

COILOVER KIT | 4 INCH LIFT - 15205

Fits: 2019-2025 RAM 1500 2WD / 4WD Excludes Classic Body

The Belltech 3.5"" to 4" front lift coilover kit for the 2019-2025 Ram 1500 is easy to install and will quickly transform your current ride into a phenomenal take-you-anywhere machine!

Belltech lift coilovers make even the most demanding trails feel smooth, with preset damping that is custom tuned for the Ram. The Trail Performance dampers feature a large 60mm body, a 20mm hardened chrome piston rod, and 35mm independent rebound and compression valves. All of which work together to keep oil cool for consistent damping that does not fade while in motion. Height adjustability is achieved using a trapezoidal threaded damper body and a spring perch that can be moved along the threads into the perfect placement for you. Once set, it will not change or adjust its position on its own. With customizable ride height, Belltech engineers were sure to add a progressive rate polymer, open-cell, bump stop, and packers to ensure the bump stop engagement is ideal for each height option. This finely tuned technology adds to a balanced ride and prevents bottoming out when driving on imperfect roads or rolling over speed bumps. The high tensile steel springs are brightly powder-coated red for an eye-catching, long lasting, protective finish.

Belltech coilovers are built with high-quality materials for longevity and strength to provide your Ram with exceptional suspension for many years to come.

• Front lifting height adjustable +3.5” to +4”
• Trail Performance dampers
• 60mm damper body
• 20mm hardened chrome piston rod
• 35mm independent valves
• High durometer vulcanized rubber bushing
• Enhanced ride quality
• Perfected preset damping
• Low-friction internal design
• Easy installation

Installation Instructions

• Installation Instructions 1
