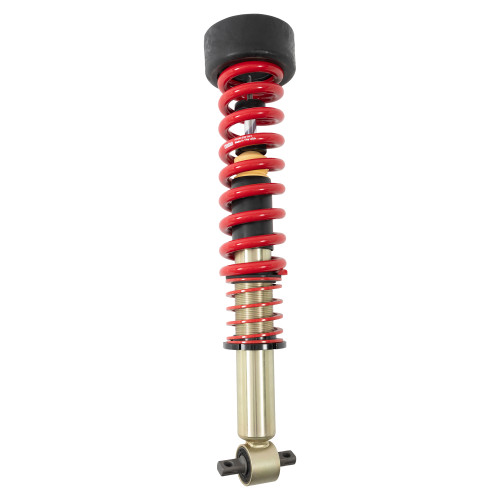

COILOVER KIT | 3-4 INCH LIFT - 15203

Fits: 2019-2025 GM Silverado/Sierra 1500 2WD / 4WD

Transform your Chevy into the truck of your dreams with Belltech's 3" to 4" front lift coilover kit. When adding height to your truck's suspension, you gain much more versatility. Your truck can be fitted with larger tires and wheels, which expand contact patch and give your vehicle a fresh, aggressive appearance. The additional clearance and increased balance to make your off-road capabilities seem limitless.

Belltech coilovers are engineered to use high-quality purposeful components that work together in unity and create the ideal driving experience. Each coilover has a heavy-duty steel Trail Performance damper that has been zinc plated to prevent rust and wear and is preset with damping forces calibrated perfectly for your specific vehicle. The damper body is a large 60mm, providing more room to keep oil cool for consistent damping. The 35mm independent valves work within the damper to fine-tune damping results, and the sturdy 20mm piston rod gives the design exceptional strength. Keeping things clean and free of debris means components last longer, so Belltech also added a high-quality plastic dust boot to the design. To allow the ideal bump stop engagement, Belltech pairs a progressive rate polymer bump stop with packers. In this coilover design are two springs, the main spring, and the helper spring. Both are made of durable steel and powder coated. The helper spring assists the main spring by keeping tension on it when the damper is at full extension.

When deciding what coilovers would make the ultimate addition to your vehicle, Belltech is the answer.

• Fits 2WD and 4WD
• Progressive rate polymer, open cell, bump stop
• Packers to perfect bump stop engagement
• High tensile steel springs, powder coated for longevity
• 60mm damper body
• 35mm independent valves
• 20mm piston rod
• Reduced body roll and enhanced drive-quality
• Added clearance and room for larger tires/wheels
• Easy installation

IMPORTANT NOTES:

• This Belltech Lift Coilover Kit does NOT fit Models with ARC or Magnetic Ride Shocks.

Installation Instructions

• Installation Instructions 1
