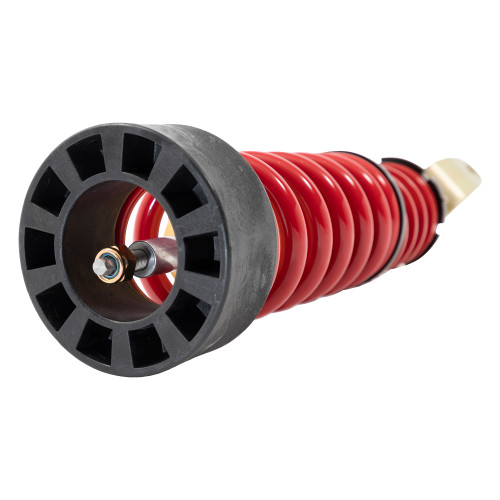

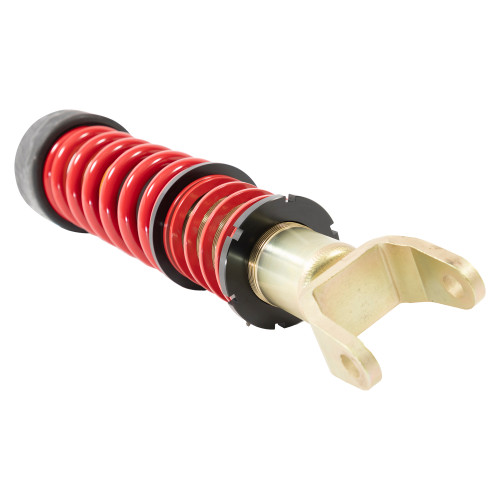

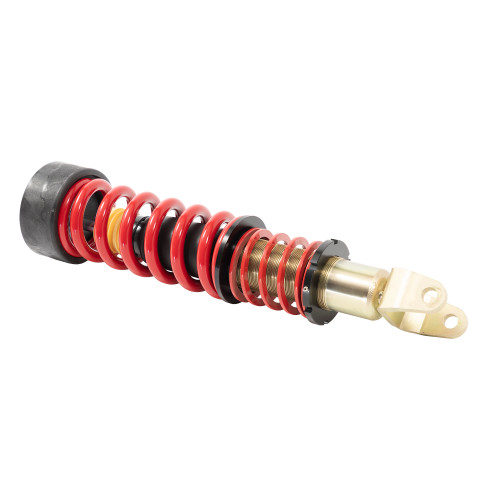

COILOVER KIT | 0-3 INCH LOWERING - 15005

Fits: 2019-2025 RAM 1500 2WD / 4WD (Excludes Classic Body)

NOTE: FOR 6 LUG MODELS ONLY

Want to travel new roads? Do so with the Belltech front lowering coilover kit for the 2019-2025 Ram 1500.

Belltech lowering coilovers make even the most demanding roads feel smooth, with preset damping that is custom tuned for the Ram. The Street Performance dampers feature a large 60mm body, a 20mm hardened chrome piston rod, and 35mm independent rebound and compression valves. All of which work together to keep oil cool for consistent damping that does not fade while in motion. Height adjustability is achieved using a trapezoidal threaded damper body and a spring perch that can be moved along the threads into the perfect placement for you. Once set, it will not change or adjust its position on its own. With customizable ride height, Belltech engineers were sure to add a progressive rate polymer, open-cell, bump stop, and packers to ensure the bump stop engagement is ideal for each height option. This finely tuned technology adds to a balanced ride and prevents bottoming out when driving on imperfect roads or rolling over speed bumps. The high tensile steel springs are brightly powder-coated red for an eye-catching, long lasting, protective finish.

Pair the seamless look of your lowered truck with the innovative feel of a luxury sports car; that is Belltech performance.

• 4WD Front lowered height adjustable -1” to -4”
• 2WD Front lowered height adjustable -1” to -3”
• Street Performance dampers
• 35mm independent valves
• High durometer vulcanized rubber bushing
• Perfected preset damping
• Easy installation

Installation Instructions

• Installation Instructions 1
