6-9 INCH LIFT KIT | FRONT & REAR TRAIL PERFORMANCE COILOVERS/SHOCKS - 153713TPC

Fits: 2019-2025 Ram 1500 2WD
Excludes TRX, E-Torque, Diesel engines, Air-Ride, and Classic body

PLEASE NOTE: RAM trucks with OEM 22" wheels require a larger bore steering knuckle due to a larger wheel bearing assembly, this lift kit will not fit the OEM wheels.

Belltech is excited to announce our extended product line for the 2019+ RAM 1500 2WD. Precision engineered in the US; this suspension lift kit system is the best riding lift kit on the market. Belltech's precisely engineered lift kits include our patented front height adjustable Trail Performance coilovers and rear Trail Performance Twin Tube shocks. Not only do we improve ride quality but also preserve factory alignment cams and specifications, retain the factory track width, and most importantly, do not induce bump steer!

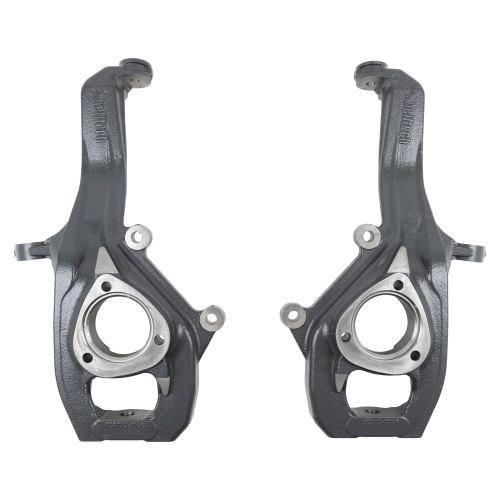

The front end includes replacement spindles, which are purposely engineered to improve strength and reduce weight. The goal is to retain factory turning radius by to maintaining the original steering angle. Belltech spindles are easy to install and keep the ball joint angles within spec, replacement ball joints are not required. We feature a ¼" thick laser-cut skid plate for added protection when tackling off-road terrain and add durable outer tie rods, so there is no cutting involved at the front end. Rounding out the front end are ¼" thick high-clearance cross-members and front stainless steel braided brake line extensions

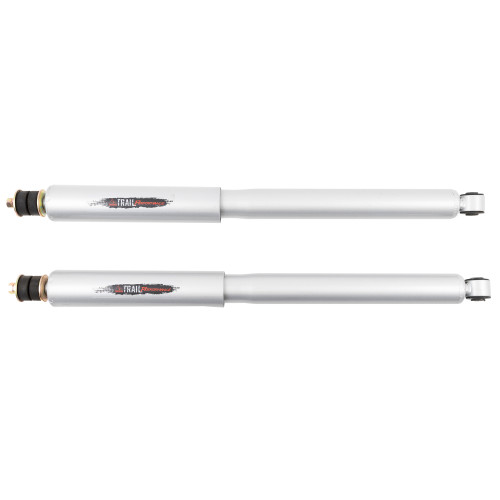

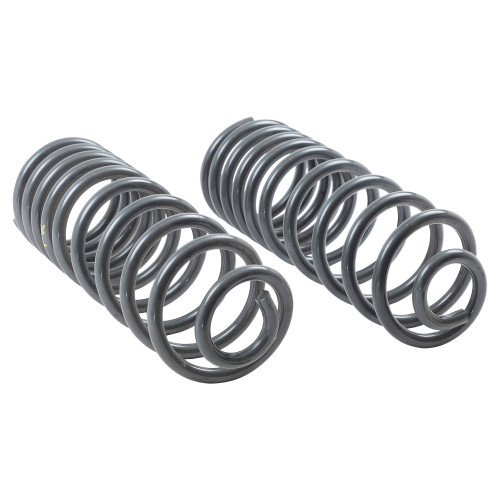

Typically, when you lift a Ram truck, the rear control arms are shorter and pull the rear wheels forward causing them to be off centered in the wheel well, thus diminishing the wheelbase. The solution is a rear control arm drop down bracket, developed by Belltech engineers, to retain all the OE rear axle and suspension dynamics while driving, resulting in a safe-feeling, enhanced ride quality that leaves you more confident in the driver's seat. Also featured is upgraded rear progressive rate coil springs, brake line relocation brackets, extended length rear sway bar links, rear Belltech twin-tube custom-tuned Trail Performance shocks, rear bump stop extensions, and a track bar relocation bracket to center the axle preventing swaying and rolling while turning.

Our Belltech Lift Kits are an easy to install, direct bolt on solution (high-quality hardware), that requires minimal cutting and no welding. They also feature a Limited Lifetime Warranty - so you are covered, no matter what.

• Uniquely engineered for the 2019+ Ram 1500 2WD
• Includes custom engineered front height adjustable Trail Performance coilovers and rear Trail Performance twin tube shocks
• Retains factory alignment specifications using factory cams
• ¼" thick steel bracketry
• Upgraded spindles to improve strength, reduced weight and improve durability
• Retains OE front suspension geometry and OEM CV angles
• Improved ride quality
• Retains factory turning radius
• Can be used OE wheels and tires
• Retains factory track width
• Easy installation and alignment - minimal cutting, no welding needed, direct bolt on kit

Wheel and Tire Combinations:
• 35"x12.5" w/ 20x10 and -18 offset
• 35"x12.5" w/ 20x10 and -19 offset
• 35"x12.5" w/ 20x10 and -25 offset
• 35"x12.5" w/ 20x10 and -25 offset
• 35"x12.5" w/ 20x9 and +0 offset
• 35"x12.5" w/ 20x9 and +1 offset
• 35"x12.5" w/ 20x9 and -12 offset
• 35"x12.5" w/ 22x10 and -18 offset
• 35"x12.5" w/ 22x10 and -19 offset
• 35"x12.5" w/ 22x10 and -25 offset
• 35"x12.5" w/ 22x10 and -25 offset

Note: Trimming may be required.

Installation Instructions

• Installation Instructions 1
