0.5-3 INCH LEVELING KIT | FRONT TRAIL PERFORMANCE COILOVERS ONLY - 154302TPC

Part Number: 154302TPC

Fits: 2005-2023 Toyota Tacoma 4WD (Excludes TRD Pro)

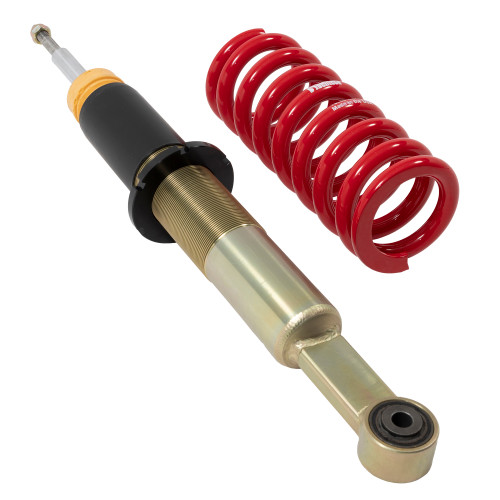

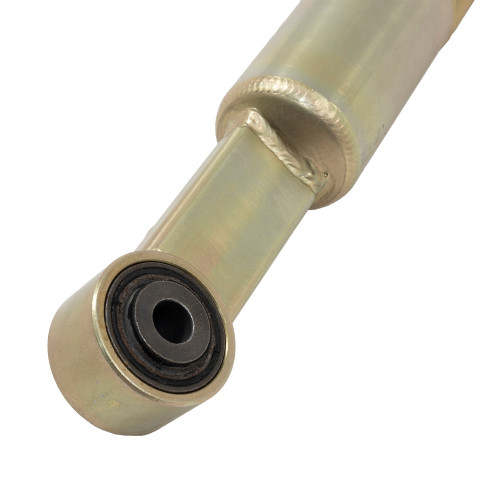

The 154302TPC leveling kit is a fantastic option if you are in search of substantial results when swapping out your front-end suspension. Featuring customizable height options from 0.5" to 3" for the front end, making your ride height level and giving your truck an updated look. In each kit are two Belltech Trail Performance coilovers that boast improved ride quality, exceptional performance, handling, and are made of durable, high-quality materials you can trust. The coilovers feature perfectly preset Trail Performance dampers at the center of the design. The dampers are made of steel and zinc plated to prevent damage from dust or debris. They have large 60mm bodies, 35mm independent compression and rebound valves, and 22mm hardened chrome piston rods. This cohesive design gives it immense strength and keeps the oil inside cool, so you feel consistent damping even while putting your suspension under maximum levels of stress. The threaded damper body and spring perch make it easy for you to adjust ride heights to precisely what suits your needs. The spring itself is made of powder-coated cold-formed steel, giving it the utmost durability. Another great component pairing Belltech uses to give you the ideal ride is our progressive rate polymer, open-cell, bump stop, and packers. The packers and bump stop are used together to perfect bump stop engagement at any of the optional ride heights. The coilovers used in this kit also showcase an angled spring shim to correct the angle of the top mount to keep the spring in line with the coilover housing thus preventing rubbing or other unwanted contact. We add a leveling differential drop kit to bring the differential down to a level in which it sits properly. Doing so allows the front axles to run at an appropriate angle and prevents them from undergoing any undue wear. At Belltech, every detail of our designs is taken into consideration and tested thoroughly to provide you with the ultimate adventure machine!

• Levels your 2005 to 2023 4WD Toyota Tacoma
• Height adjustable 0.5" to 3"
• Trail Performance dampers
• 60mm damper body
• 22mm hardened chrome piston rod
• 35mm independent rebound and compression valves
• Spring shim
• Progressive rate polymer, open-cell, bump stop
• Packers to perfect bump stop engagement
• High tensile steel springs, powder coated for longevity

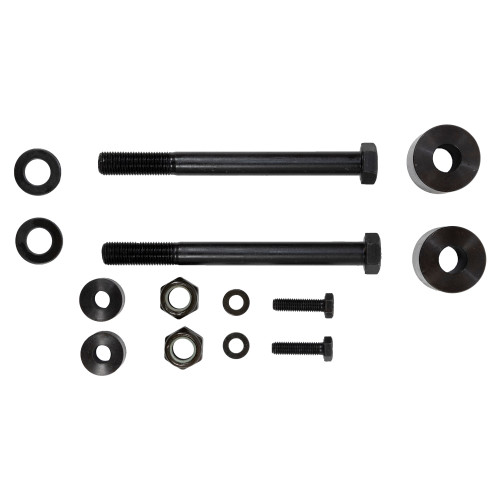

• Differential drop kit included
• Increases clearance
• Allows room for larger tires/wheels
• Enhances drive-quality
• Perfected and preset damping forces
• Easy installation
• Precision Designed and Engineered in the USA

Installation Instructions

• Installation Instructions 1
• Installation Instructions 2
